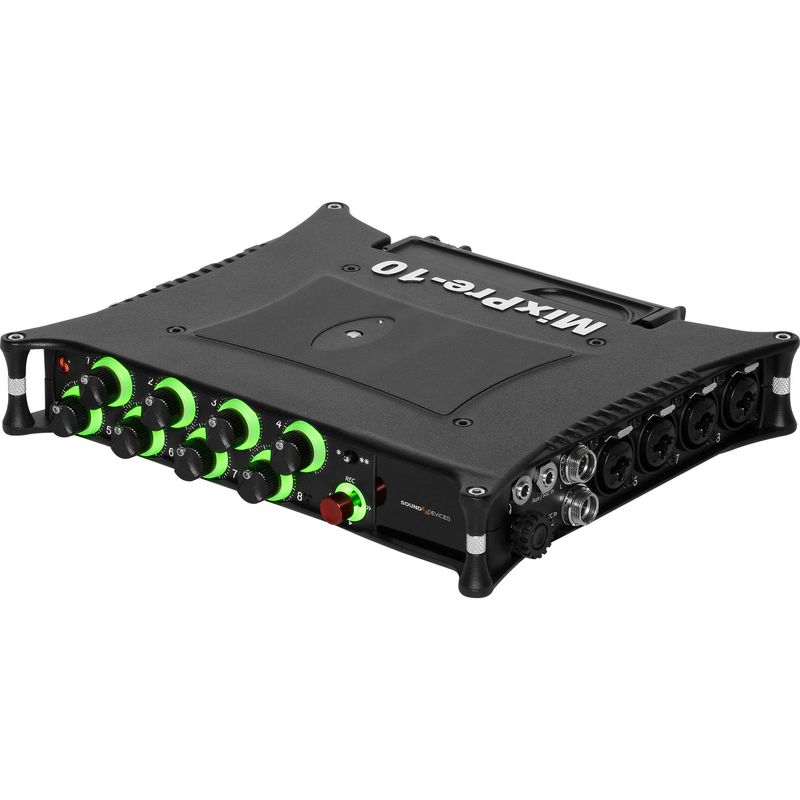

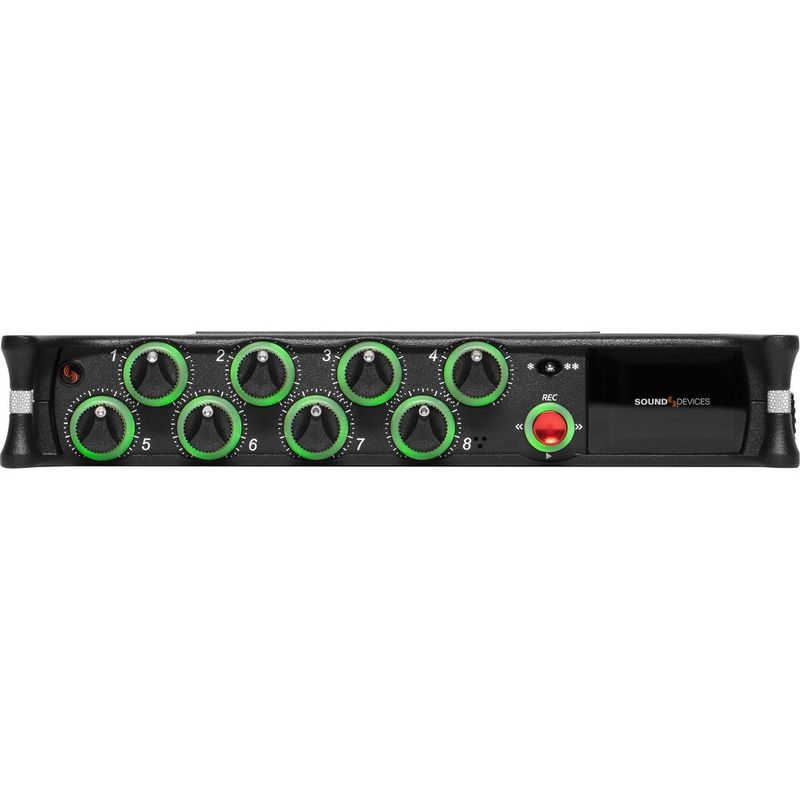

- 8 preamplificatoare Kashmir cu microfon ultra-low-noise cu limitator ajustabil pentru captarea sunetului de cea mai inalta calitate
- inregistrati pana la 11 track-uri pe card SD si faceti back-up pe un stick USB
- 12 intrari, 4 iesiri; faceti streaming direct pe calculator prin interfata USB-C
- bit depth de la 16 la 32, sampling rates de la 44.1 kHz la 192 kHz
- LTC timecode generator integrat; timecode In/Out via BNC sau Aux In/Stereo Out
- ISO mixing, gain, pan, low-cut, phase inversion, phantom power
- afisaj clar chiar si in lumina soarelui
- amplificare casti 300 mW+300 mW pentru monitorizare precisa

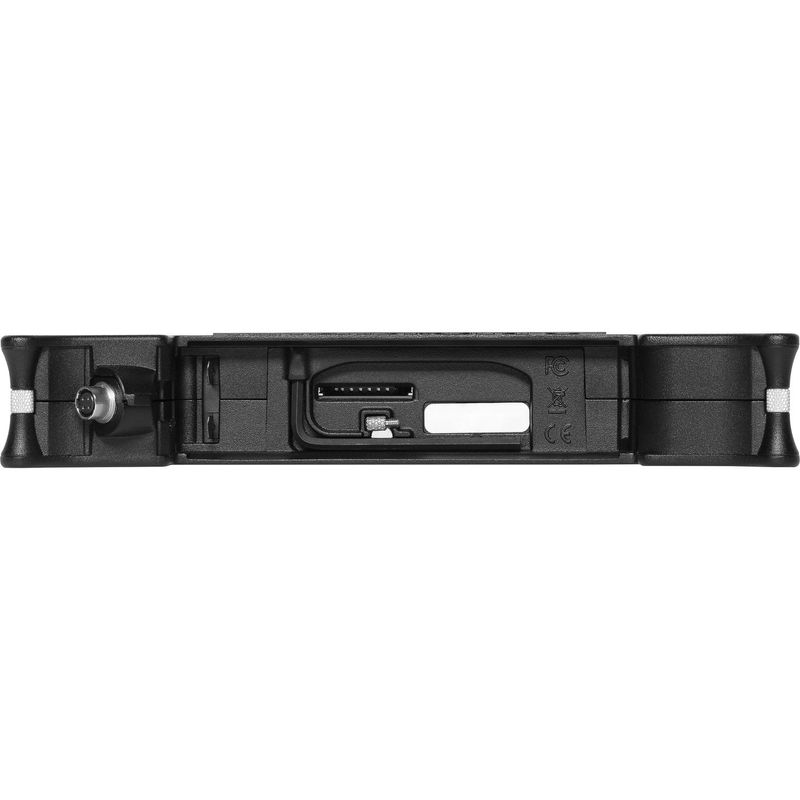

- slot baterii (neincluse), alimentator XL-WPH3 AC, cablu USB-C la USB-C
- personalizare cu plugin-uri din magazinul virtual
Specificatii:
- Raspuns frecvente: 10Hz to 80kHz +/- 0.5dB re 1kHz @ 192kHz sample rate
- THD + Noise: 0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
- ADC: 32 bit precision; 142dB dynamic range min (A-weighted, gain=10dB, fader=0dB)
- Equivalent Input Noise: -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)

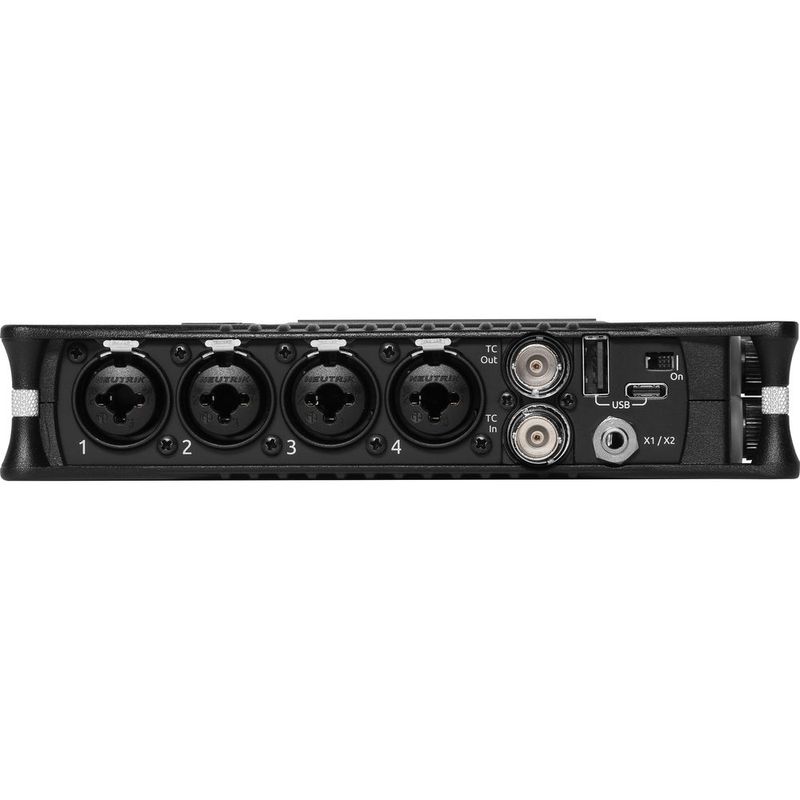

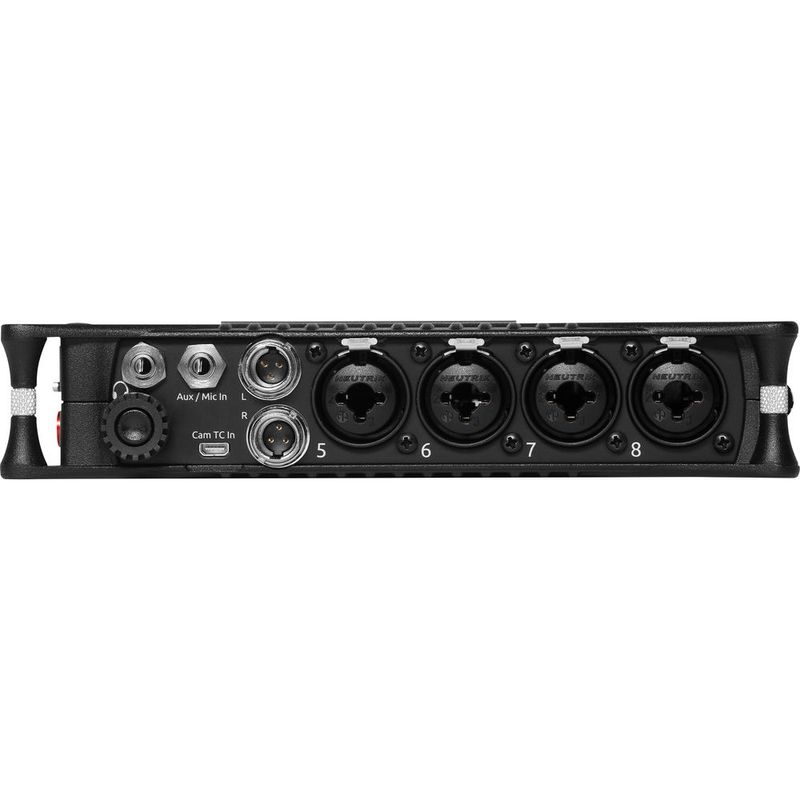

- Intrari:
•Mic: XLR active-balanced; 4k input
•Line: XLR active-balanced; 4k input
•Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input
•Line: ¼-inch TRS active-balanced; 4k input
•USB Audio: 4 canale
- Gain:
•Mic input: +6dB to +76dB
•Line input: -20dB to +30dB
•Fader: -inf ~ +20dB
•Casti: -inf ~ +20dB
•Total, Mic-to-recording (max): +96dB
•Aux In (Mic): Gain = +10dB to +40dB
•Aux In (Line): Gain = -10dB to +20dB
•Total Aux Gain including Fader (Mic-to-recording): +60dB
- Maximum Input Level:
•Mic XLR: +14dBu (limiters on / off)
•Line XLR/¼-inch: +28dBu (limiters on / off)
•Aux In (Mic): -10dBu
•Aux In (Line): +10dBu
- Low Cut Filters: 40Hz to 160Hz (adjustable), 18 dB/oct; First stage analog, subsequent stages digital
- Microphone Powering: Mic XLRs: 48V via 6.8k resistors, 10mA fiecare; Mic 3.5mm: 3V @ 3k source
- Limiters: Limiter at all gain stages, range > 40dB; First stage analog, subsequent stages digital; Adjustable Threshold, Ratio, and Release
- DAC feeding Stereo Out, Headphone Out: 32 bit precision; 115dB dynamic range (A-weighted)
- L/R Out: TA3 2-channel balanced, 1.1K max output impedance, +18 dBu max output level
- X1/X2 Out: 3.5mm TRS stereo unbalanced, 500 ohm output impedance, +7.8dBu max output level
- Headphones Out: 3.5mm TRS stereo unbalanced, 300mW + 300mW, for use with any impedance headphones
- USB:
•Audio Interface (USB-C): 12-in/4-out; 44.1 to 96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed sau ASIO® driver (poate fi descarcat)
•Mass Storage (USB-C): USB 2.0 high speed
•Keyboard (USB-A): Text entry, control
•Thumbdrive (USB-A): Manual sau auto-copy pe drive
•Midi Control Surface (USB-A)
- Nr. de track-uri maxime de inregistrat: 12 track-uri - Stereo mix + 10 ISOs
- Sampling Frequency: 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 96 kHz, 192 kHz
- Bit Depth: 16, 24, 32 Float
- Stocare: SD, SDXC, SDHC; stick USB, doar copiere; maxim 512GB, format card exFAT
- Tip fisiere: Polyphonic WAV
- Moduri timecode: Free Run, Time of Day (file stamped w/current ToD), Rec Run, Ext LTC (file stamped w/incoming LTC on BNC or Aux 3.5mm), Camera TC (file stamped w/incoming TC from cameras that output TC)
- Timecode Frame Rates: Auto-detects (fps): 23.98 (= 23.976); 24; 25; 29.97DF; 29.97ND; 30; 30DF
- Sync Source: Internal, Word Clock, Ext LTC
- BNC In (TC In): Switchable between Timecode (default) or Word Clock Input; Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p (–17 dBu - +3 dBu); Word Clock: 10k ohm impedance, 1.5V p-p
- BNC Out (TC Out): Switchable between Timecode (default) or Word Clock Output; Timecode: 1k ohm impedance, 3.0V p-p (+12 dBu); Word Clock: 75 ohm impedance, 5V p-p
- HDMI: TC Reader via HDMI
- Sample/Timecode Accuracy: 0.2 ppm (0.5 frames per 24h)
- Remote Control:
•Bluetooth LE: Wireless control using Wingman app
•HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI
•Timecode: Auto-record start/stop trigger via Aux In timecode
- Ecran tactil: 320x256; 1.6-inch, color, sunlight-viewable IPS LCD
- Alimentare:
•8x AA (neincluse, recomandate baterii NiMH)
•L-Mount: slot optional pentr 2x (hot-swappable) acumulatori Li-ion
•Alimentator: XL-WPH3 (inclus)
- Dimensiuni: 36 mm x 206 mm x 175 mm
- Greutate: 0.91 kg
