Accesorii fotoMonitoare si recordere videoBlackmagic Video Assist 7" 12G HDR
-300,00 lei

Blackmagic Video Assist 7" 12G HDR

4.999,00 lei4.699,00 lei
Rate de la 195,79 lei

Deschidere la livrare

Garantie

Specificatii tehnice

ProprietateSpecificație
Warranty Length
12

Specificatii tehnice

ProprietateSpecificație

Blackmagic Video Assist 7" 12G HDR

4.999,00 lei4.699,00 lei

Descriere

Blackmagic Video Assist 7" 12G HDR

store/product-description.title

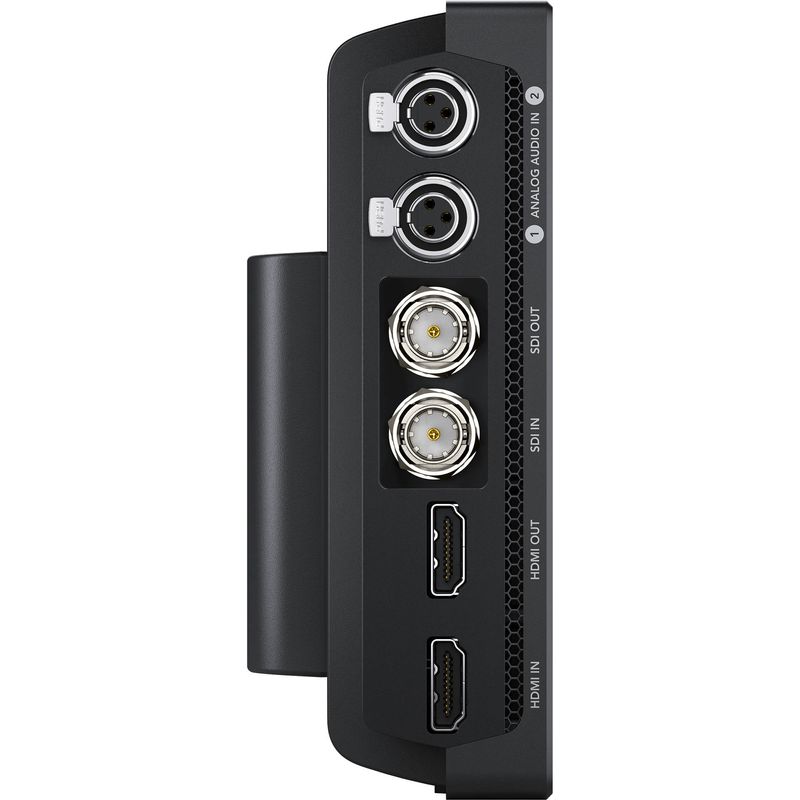

Connectivitate
SDI Video Inputs: 1
SDI Video Outputs: 1
SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0a Video Inputs: 1
HDMI 2.0a Video Outputs: 1
Analog Audio Inputs: 2 x balanced mini XLR with phantom power
Analog Audio Outputs: 1 x 3.5 mm headphone jack.
Built in Speaker: Mono
Screen Dimensions: 7-inch 1920 x 1200
Screen Brightness: 2500nits
Screen Colour: P3 wide colour gamut
SDI Audio Inputs: 16 channels embedded via 12G-SDI
SDI Audio Outputs: 16 channels embedded via 12G-SDI
HDMI Audio Inputs: 8 channels embedded via HDMI 2.0a
HDMI Audio Outputs: 8 channels embedded via HDMI 2.0a
Remote Control:1 x 2.5mm LANC for Record Start and Stop.
SD Interface: Dual UHS-II SD slots
Storage Type: Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.

Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface:1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control.

SDI Video Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

1080i50, 1080i59.94, 1080i60
2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI

2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
SDI Metadata Support: HD RP188

Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
Video Sampling: 4:2:2 YUV
Colour Precision: 10-bit
Colour Space: REC 601, REC 709, REC 2020
HDR Support: HDR10, Hybrid Log Gamma
Multiple Rate support: SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s

HDMI Video Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
HDMI Colour Precision: 10-bit
HDR Support: HDR10, Hybrid Log Gamma
Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media
Media: 2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.
Media Type: SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.

Supported Codecs: ProRes 422 HQ, ProRes 422, ProRes 422 LT, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF.

Control
Recorder Control: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
External Control: LANC, SDI start/stop, timecode run.

Software
Software inclus: Blackmagic Video Assist Operating System

Scopes
Scopes: Waveform, RGB Parade, Vector, Histogram.
Viewing Modes: Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules.

Sistem de operare
Mac: Mac 10.13 High Sierra,

Mac 10.14 Mojave+
Windows: 8.1 or 10

Alimentare
Alimentare: 1 x External 12V power supply.

Compatibil cu acumulatori Sony NP-F style (neinclus).

Caracteristici fizice
Dimensiuni (L x W x H): 193 x 37 x 130.5mm
Greutate: 825g

Caracteristici de mediu
Temperatura operare:
0° - 40° C
Temperatura stocare:
-20° - 45° C
Umiditate relativa:
0% - 90% fara condens

Descrierea bunurilor sau a serviciilor disponibile pe www.f64.ro (prin imagini, video etc.) nu reprezinta o obligatie contractuala din partea F64, acestea fiind utilizate exclusiv cu titlu de prezentare. Implicit F64 Studio S.R.L. nu isi asuma raspunderea pentru eventualele erori de pret sau stoc. Aceste erori nu obliga F64 Studio S.R.L. la nicio actiune. Preturile si disponibilitatea produselor comercializate de catre F64 Studio SRL pot suferi modificari ulterioare, acest lucru fiind influentat de factori externi precum politica de preturi a distribuitorilor sau disponibilitatea produselor pe stocul acestora. De asemenea, F64 Studio S.R.L. isi rezerva dreptul de a corecta eventuale omisiuni sau erori in afisare care pot surveni in urma unor greseli de dactilografiere, lipsa de acuratete sau erori ale produselor software, fara a anunta in prealabil.

ID-ul itemului: 309203

Specificatii

Blackmagic Video Assist 7" 12G HDR

Performanta
Tip monitor
Portabil
Rezolutie acceptata
4K
Rezolutie ecran
Peste 1920 x 1080
Diagonala ecran
7 inch
Recorder
Da
Conectivitate
HDMI
Da
SDI
Da

Accesorii recomandate pentru
