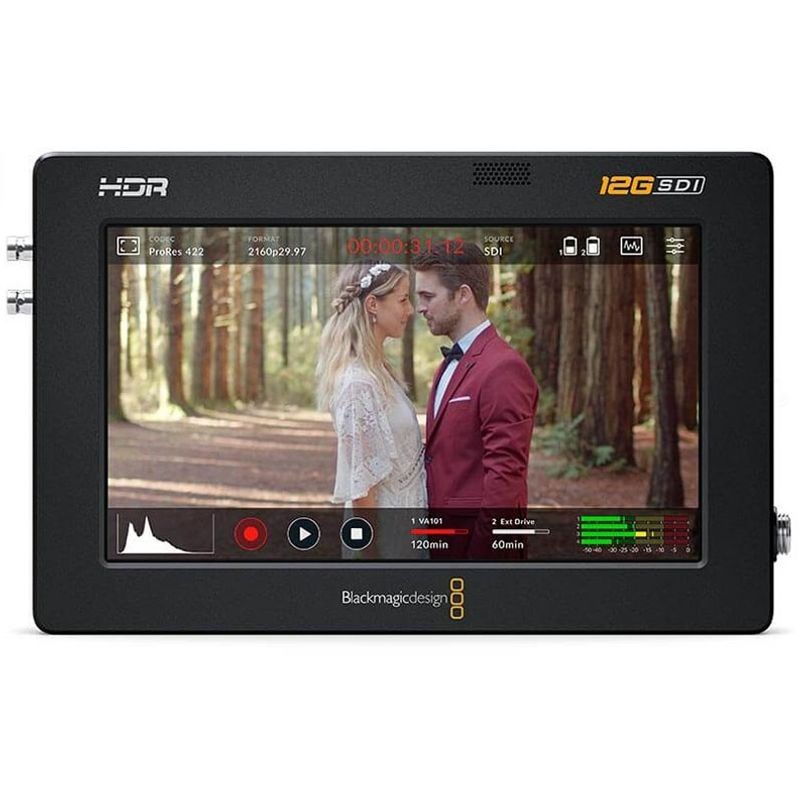

Blackmagic Video Assist 5" 12G HDR

blackmagic
Blackmagic Video Assist 12G HDR va ajuta sa monitorizati filmarile cu camere cu conector SDI sau HDMI in format HD, Ultra HD, 2K, 4K DCI. Ecranul este luminos, ideal pentru HDR-uri. Poate fi folosit de asemenea si ca un recorder pe teren sau pentru broadcasting, multumita intrarilor HDMI si 12G-SDI. Dispune de functii avansate precum 3D LUT si ofera informatii despre Waveform, RGB Parade, Vector, Histogram. Monitorul va permite sa controlati imaginea inaintea sa o transmiteti live. Este dotat cu 2 slot-uri media, intrari analogice pentru audio, difuzor si jack pentru casti. Se alimenteaza cu 2 baterii standard Sony L-Series sau cu alimentatorul inclus. Puteti folosi orice software de editare, deoarece Video Assist este compatibil cu toate programele (Apple ProRes, Avid DNx, Blackmagic RAW).
Mai mult
Variante:
Pachete:
(TVA inclus)
Cod produs:
125047382
Deschidere
colet
Cumpara acest produs in rate incepand de lavezi detalii
Recomanda acest produs si prietenilor tai:

Descriere
Blackmagic Video Assist 5" 12G HDR

Connectivitate

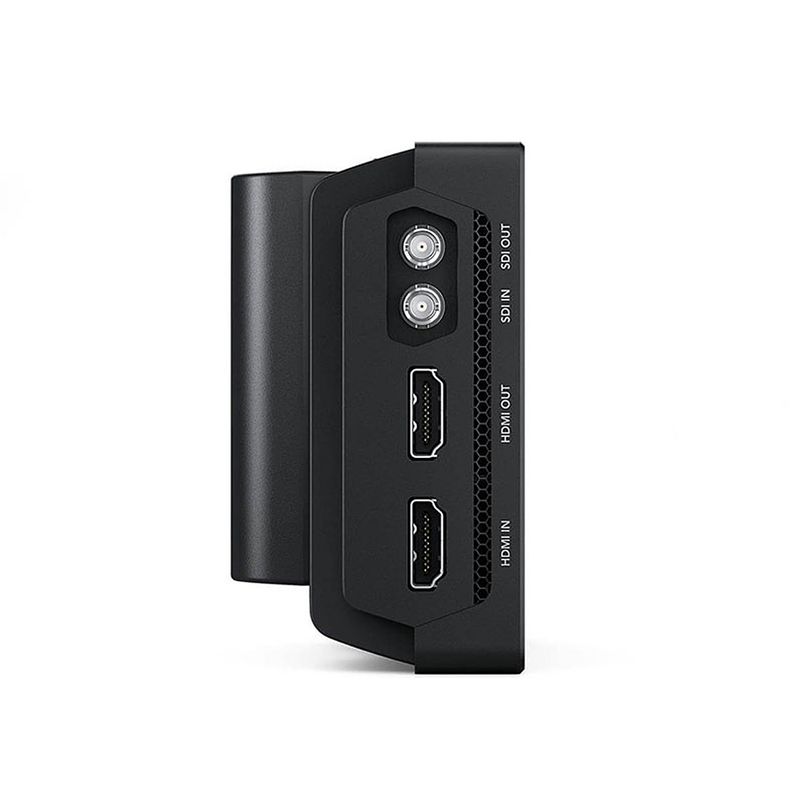

SDI Video Inputs:1 x Micro BNC
SDI Video Outputs: 1 x Micro BNC
SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0a Video Inputs: 1
HDMI 2.0a Video Outputs: 1
Analog Audio Inputs: None, embedded audio only.
Analog Audio Outputs: 1 x 3.5 mm headphone jack.
Built in Speaker: Mono
Screen Dimensions: 5-inch 1920 x 1080.
Screen Brightness: 2500nits
Screen Colour: P3 wide colour gamut
SDI Audio Inputs: 16 channels embedded via 12G-SDI
SDI Audio Outputs: 16 channels embedded via 12G-SDI
HDMI Audio Inputs: 8 channels embedded via HDMI 2.0a
HDMI Audio Outputs: 8 channels embedded via HDMI 2.0a
Remote Control: None

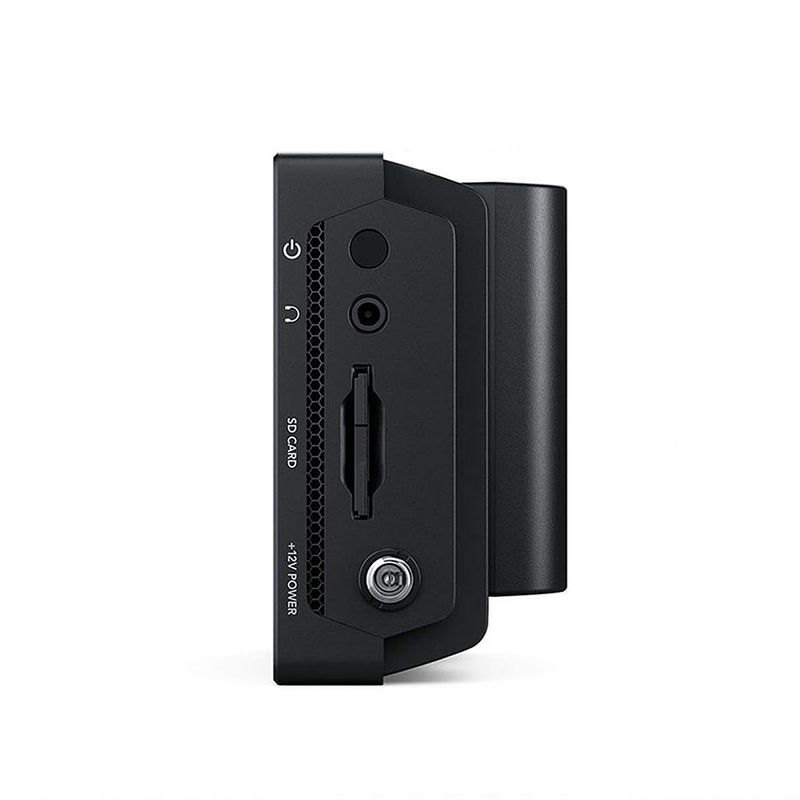

SD Interface: 1 x UHS-II SD slot.
Storage Type: Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.

Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control.

SDI Video Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

1080i50, 1080i59.94, 1080i60
2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI

2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
SDI Metadata Support: HD RP188
Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
Video Sampling: 4:2:2 YUV
Colour Precision: 10-bit
Colour Space: REC 601, REC 709, REC 2020
HDR Support: HDR10, Hybrid Log Gamma
Multiple Rate support: SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s

HDMI Video Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
HDMI Colour Precision: 10-bit
HDR Support: HDR10, Hybrid Log Gamma
Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media
Media: 1 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.
Media Type: SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.

Supported Codecs: ProRes 422 HQ, ProRes 422, ProRes 422 LT, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF.

Control
Recorder Control: Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.
External Control: None

Software
Software inclus: Blackmagic Video Assist Operating System

Scopes
Scopes: Waveform, RGB Parade, Vector, Histogram.
Viewing Modes: Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules.

Sistem de operare
Mac: Mac 10.13 High Sierra,

Mac 10.14 Mojave+.
Windows: 8.1 sau 10.

Alimentare

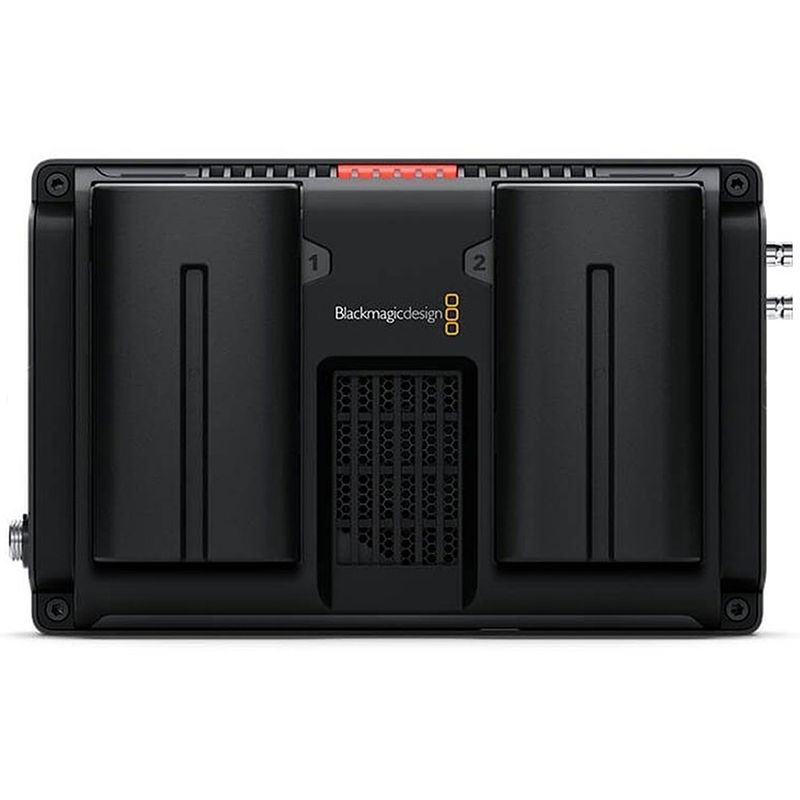

Alimentare: 1 x External 12V power supply.

Compatibil cu acumulatori Sony NP-F (neinclus in pachet).

Carcateristici fizice
Dimensiuni (L x W x H) : 148 x 36.5 x 90mm
Greutate: 410g

Caracteristici de mediu
Temperatura operare:
0° - 40° C
Temperatura stocare:
-20° - 45° C
Umiditate relativa:
0% - 90% fara condens
Mai mult

Specificatii
Blackmagic Video Assist 5" 12G HDR

Product Information

Warranty Length24

Performanta

Tip monitorPortabil
Rezolutie acceptata4K
Rezolutie ecranPeste 1920 x 1080
Diagonala ecran5 inch
RecorderDa

Conectivitate

HDMIDa
SDIDa
