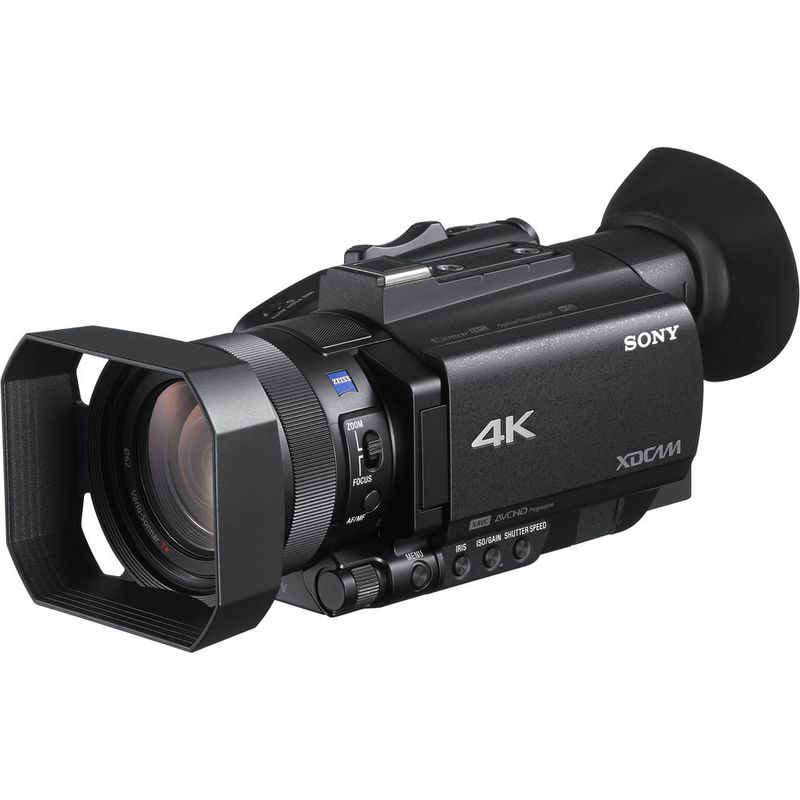

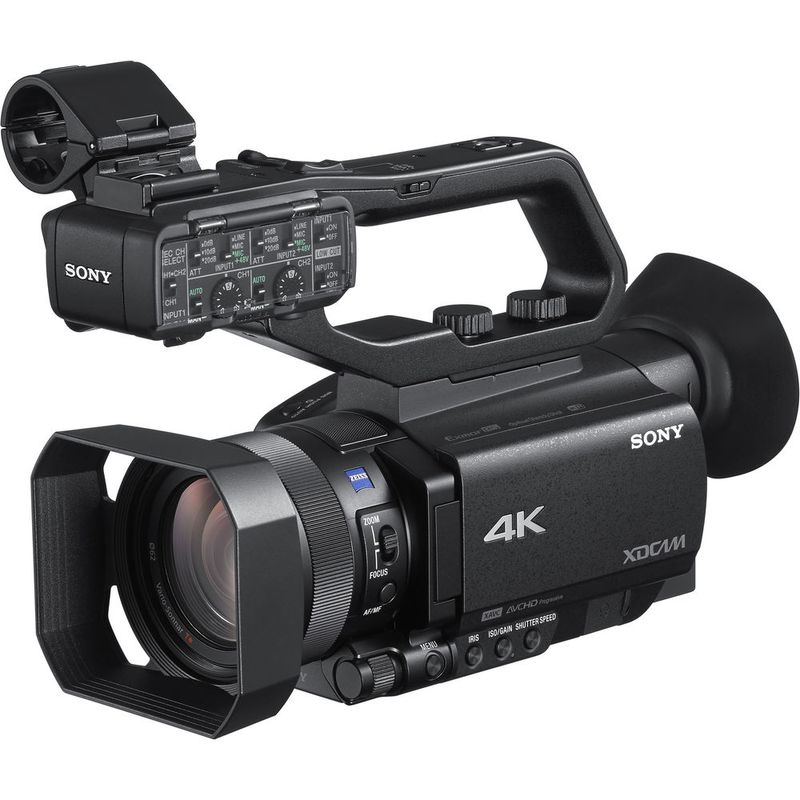

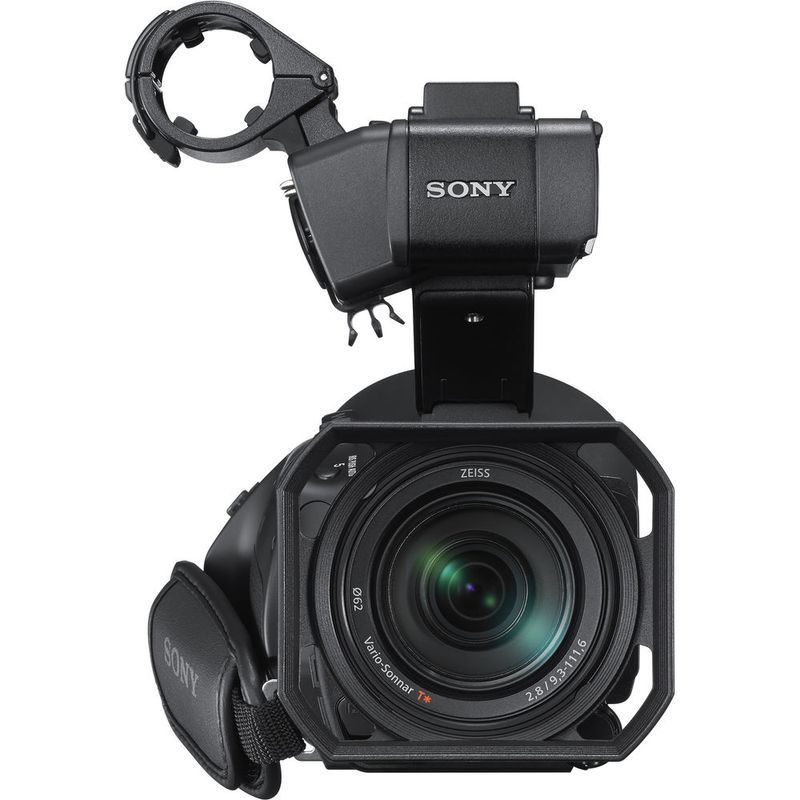

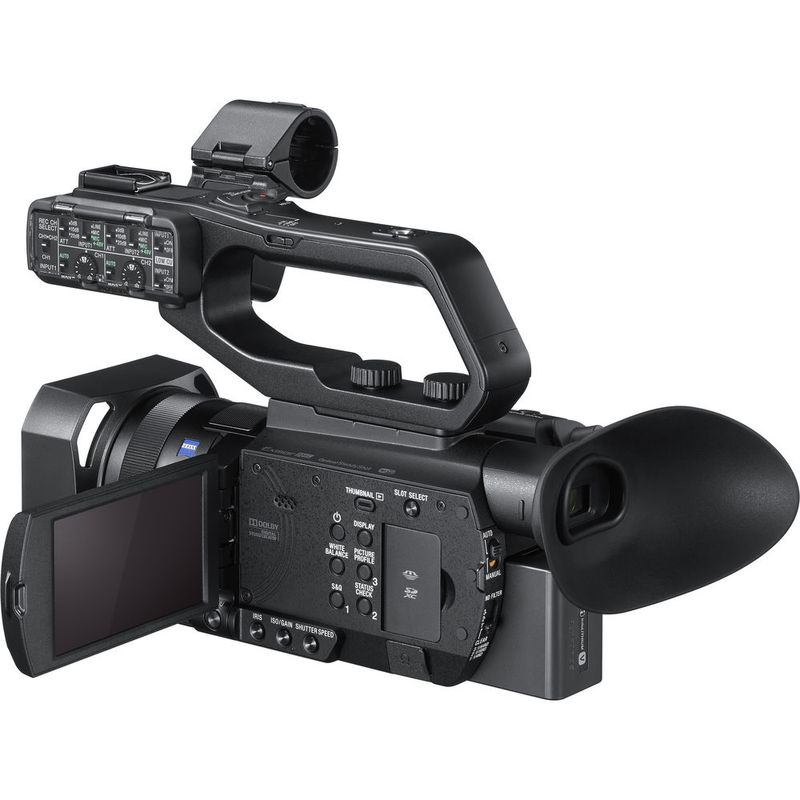

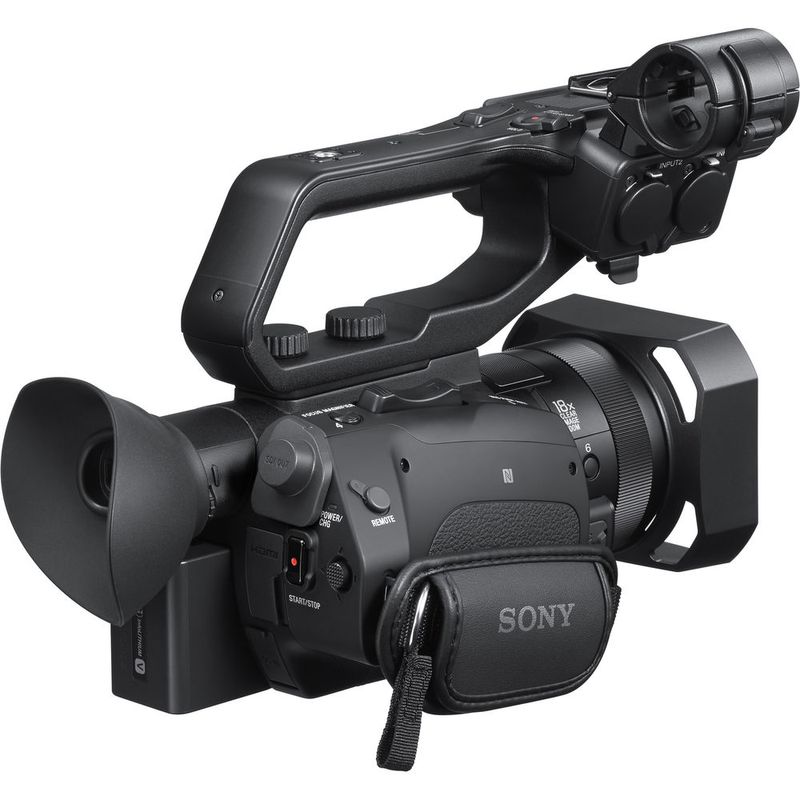

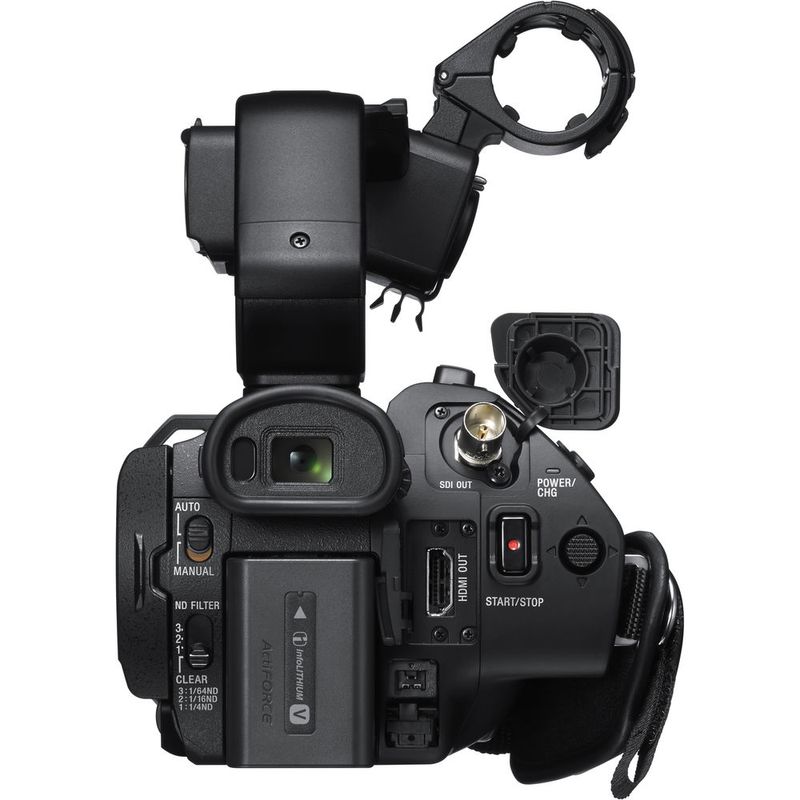

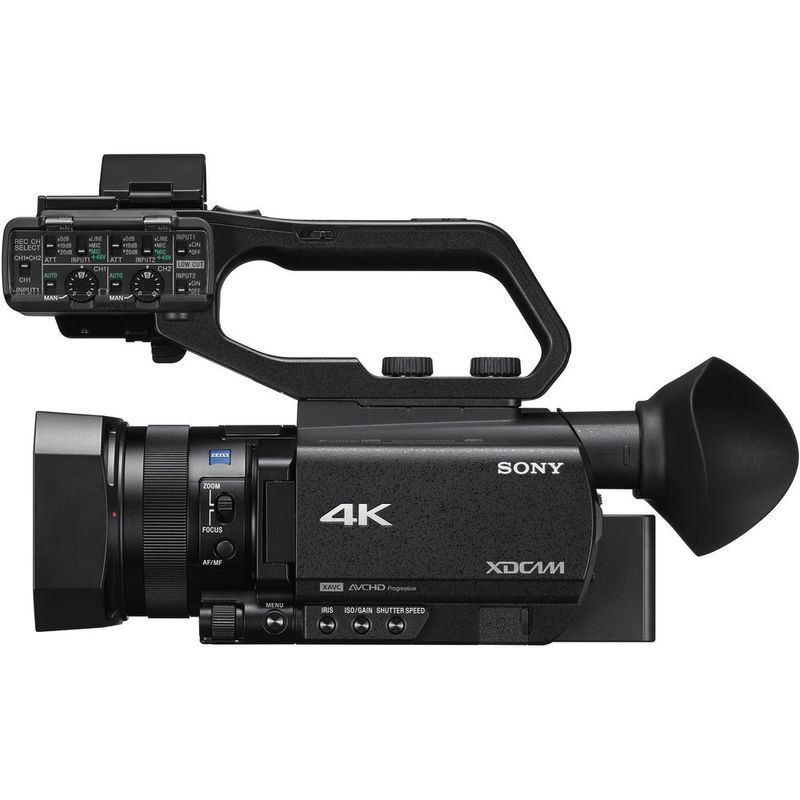

Sony PXW-Z90, 4K, Senzor 1" Exmor RS

sony
PXW-Z90 reprezinta un upgrade la camera video PXW-X70. Cu Sony PXW-Z90 puteti inregistra la calitate 4K. Functia de autofocalizare foloseste tehnologii avansate, reusind sa mentina focusul pe subiect chiar si atunci cand apar alte obiecte in prim plan. Puteti alege punctul de focalizare prin atingerea ecranului. De asemenea, puteti alege daca focalizarea se face pe tot ecranul, in centru sau cu un punct de focalizare flexibil. Functia de autofocalizare este complet configurabila, pe langa elementele mentionate mai sus operatorul putand alege ca focalizarea sa se blocheze pe un singur subiect si sa il urmareasca sau sa se mute in momentul in care un subiect nou intra in cadru. Camera dispune de conexiune LANC de 2.5mm cu control de la distanta, iesire SDI 3G si HDMI. Mai mult, PXW-Z90 beneficiaza de conectivitate wireless (5Ghz si 2.4Ghz) ce permite streaming wireless catre servere de retea, USTREAM si Sony XDCAM AIR. Senzorul Exmor RS de 1" ofera o imagine 14.2M QFHD 4K (3840x2160) in format XAVC ce permite filmari in S-Log 2 sau 3, precum si in stilul Hybrid Log Gamma pentru HDR, tipic pentru Sony. Indiferent daca se vrea semnal live gata de broadcast sau filmare Log pentru corectie de culoare in post productie, Sony PXW-Z90 este capabil de rezultate la inaltime. • Senzor 1" Exmor RS CMOS • Filmare UHD 4K (3840 x 2160) 25p • Phase-Detection Auto Focus (AF) • 4K HDR cu Hybrid Log-Gamma (HLG) • Zoom optic 12x, Zoom Clear Image 18x • Full HD pana la 120 fps/ Super Slow to 960 fps • XAVC HD/ QFHD & MPEG2HD • S-Log3/ S-Gamut3 • 3G-SDI Output, Streaming 2.4/ 5 GHz • 2 sloturi de card SD, Relay & Simul Modes
Mai mult

Por: 14.299,00 Leiou X de

(TVA inclus)
Opções de Parcelamento:
  • à vista 14.299,00 Lei
  • 2X de 7.149,50 Lei
  • 3X de 4.766,33 Lei
  • 4X de 3.574,75 Lei
  • 5X de 2.859,80 Lei
  • 6X de 2.383,16 Lei
  • 7X de 2.042,71 Lei
  • 8X de 1.787,37 Lei
  • 9X de 1.588,77 Lei
  • 10X de 1.429,90 Lei
  • 11X de 1.299,90 Lei
  • 12X de 1.191,58 Lei
  • 18X de 794,38 Lei
  • 24X de 595,79 Lei
Outras formas de pagamento
Adauga in cos
Cod produs:
125037937
Deschidere
colet
Cumpara acest produs in rate incepand de lavezi detalii
Recomanda acest produs si prietenilor tai:

Descriere
Sony PXW-Z90, 4K, Senzor 1" Exmor RS
















Senzorul de imagine revolutionar Exmor RS


Senzorul de 1 inch CMOS cu o rezolutie efectiva de 14.2 megapixeli poate capta imagini superbe cu un bokeh deosebit si cu un zgomot de imagine foarte redus in conditii de iluminare slaba.Acest sensor integreaza 273 puncte de focus phase-detection care acopera aproximativ 84% din imagine, pentru un control precis si rapid al focalizarii in modul Auto.























Autofocus precis si uluitor de rapid


Sony PXW-Z90 incorporeaza un system Fast Hybrid de autofocus, cu functia de detectare a fetei si posibilitatea de focalizare automata prin blocare, ce faciliteaza focalizarea si urmarirea unui subiect in timpul filmarii.














Slow Motion la 120 cadre pe secunda in 1080p


In rezolutia 1080p camera poate filma pana la 12fps (cadre pe secunda) pentru a beneficia de un slow-motion superb, transformand camera intr-un instrument creative desavarsit. De asemenea se poate folosi si modul SUPER SLOW MOTION care poate trage cadre de pana la 960 fps in 1080 [50i sau 60i]* 960 fps (NTSC). 1000 fps (PAL).** 120fps (NTSC)/ 100fps (PAL)














Conexiuni versatile pentru un flux de lucru imbunatatit


Prin conexiuna 3G-SDI Sony PXW-Z90 poate suporta rezolutii de 1080 60/50p. Prin interfata HDMI remote, camera se poate conecta la o varietate de accesorii compatibile pentru solutii de LIVE, cum ar fi mixerul Sony MCX-500 si controller-ul RM-30BP.














Specificatii de retea avansate

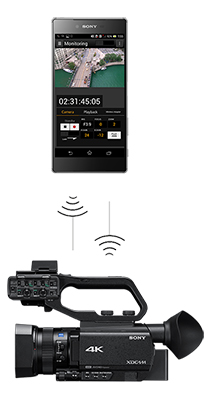

Sony PXW-Z90 beneficiaza de tehnologiile Wi-Fi/NFC PXW-Z90 vine cu am ambele benzi de radio de 2.4GHz dar si 5GHz, in standard. Datorita acestei facilitate, camera poate face streaming direct via (Ustream) fara a fi nevoie de un mixer sau encoder. QoS Streaming permite transferul fisierelor live sa poata fi vizionate de la o locatie remote.Permite transferul FTP. Camera poate fi controlata prin Wi-Fi/NFC cu ajutorul unu smartphone sau al unei tablete.










Specificatii tehnice















Specificatii generale
GreutateAprox 1020g (cu parasolar, eyecup)








Dimensiuni (W x H x D)121.0mm x 104.0mm x 274.5mm (cu accesorii - parasolar, large eyecup)

























































































































































































































































































































































































































































Cerinte alimentare DC In: 8.4V
baterie: 7.4V
Putere consumata Aprox. 6.5 W(in timp ce inregistreaza cu viewfinder si XAVC QFHD 2160/30p 60Mbps)
Aprox. 6.9 W (in timp ce inregistreaza cu LCD si XAVC QFHD 2160/30p 60Mbps)
Temperatura de operare 0°C to 40°C
32°F to 104°F
Temperatura depozitare -20°C to +60°C
-4°F to +140°F
Timp de operare pe baterie Aprox. 140min. cu NP-FV70A baterie (in timp ce inregistreaza cu LCD, XAVC QFHD 2160/30p, 60Mbps)
Aprox. 265 min. cu NP-FV70A baterie (in timp ce reda cu LCD, XAVC QFHD 2160/30p, 60Mbps)
Formate de inregistrare Video XAVC QFHD : MPEG-4 AVC/H.264 4:2:0 Long profile
XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile
XAVC Proxy : MPEG-4 AVC/H.264 4:2:0 Long profile
MPEG HD422 (CBKZ-SLMP required) : MPEG-2 [email protected] 4:2:2 Long profile
MPEG HD420 (CBKZ-SLMP required) : MPEG-2 [email protected] 4:2:0 Long profile
MPEG HD Proxy (CBKZ-SLMP required) : MPEG-4 AVC/H.264 4:2:0 Long profile
AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
Formate de inregistrare Audio XAVC QFHD : Linear PCM 2ch, 24bit, 48kHz
XAVC HD : Linear PCM 2ch, 24bit, 48kHz
XAVC Proxy : AAC-LC 2ch?16bit?48kHz
MPEG HD422 (CBKZ-SLMP required) : Linear PCM 2ch, 24bit, 48kHz
MPEG HD420 (CBKZ-SLMP required) : Linear PCM 2ch, 16bit, 48kHz
MPEG HD Proxy (CBKZ-SLMP required) : AAC-LC 2ch?16bit?48kHz
AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
Frame rate Inregistrare XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
XAVC HD (1920 x 1080) @59.94p, 50p, 29.97p, 25p, 23.98p, 50Mbps/35Mbps
XAVC HD (1920 x 1080) @59.94i, 50i, 50Mbps/35Mbps/25Mbps
XAVC HD (1280 x 720) @59.94p, 50p, 50Mbps
XAVC Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
XAVC Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
MPEG HD422 (1920 x 1080) (CBKZ-SLMP required) @59.94i, 50i, 29.97p, 25p, 23.98p, 50Mbps
MPEG HD422 (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, 50Mbps
MPEG HD420 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, HQ mode(35Mbps)
MPEG HD420 (1440 x 1080) (CBKZ-SLMP required) @59.94i, 50i, HQ mode(35Mbps)
Frame rate Inregistrare (Cont)MPEG HD420 (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, HQ mode(35Mbps)
MPEG HD Proxy (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
MPEG HD Proxy (640 x 360) (CBKZ-SLMP required) @59.94p, 50p, 29.97p, 25p, 23.98p 3Mbps
AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28Mbps)
AVCHD (1920 x 1080) @59.94i/50i FX mode (24Mbps) FH mode(17Mbps)
AVCHD (1920 x 1080) @29.97p/25p/23.98p, FX mode (24Mbps)
AVCHD (1440 x 1080)@59.94i, 50i LP mode (5Mbps)
AVCHD (1280 x 720)@59.94p, 50p, HQ mode (9Mbps)
Timp Inregistrare/Redare XAVC QFHD @LPCM 2ch 100 Mbps
Aprox. 65 min cu 64 GB memory card
XAVC QFHD @LPCM 2ch 60 Mbps
Aprox. 100 min cu 64 GB memory card
XAVC HD @LPCM 2ch 50 Mbps
Aprox. 120 min cu 64 GB memory card
XAVC HD @LPCM 2ch 35 Mbps
Aprox. 170 min cu 64 GB memory card
XAVC HD @LPCM 2ch 25 Mbps
Aprox. 220 min cu 64 GB memory card
MPEG HD422 (CBKZ-SLMP required) @LPCM 2ch 50 Mbps
Aprox. 110 min cu 64 GB memory card
MPEG HD420 (CBKZ-SLMP required) @LPCM 2ch HQ Mode
Aprox. 170 min cu 64 GB memory card
AVCHD @LPCM 2ch PS Mode
Aprox. 305 min cu 64 GB memory card
AVCHD @LPCM 2ch FX Mode
Aprox. 360 min cu 64 GB memory card
Timp Inregistrare/Redare (cont)AVCHD @LPCM 2ch FH Mode
Aprox. 495 min cu 64 GB memory card
AVCHD @LPCM 2ch HQ Mode
Aprox. 880 min cu 64 GB memory card
AVCHD @LPCM 2ch LP Mode
Aprox. 1540 min cu 64 GB memory card
Lentila
Tip lentila Fixa
Zoom12x (optical), servo
Distanta focala f=9.3 - 111.6mm
equivalent to f=29.0 - 348.0mm on 35 mm lens(16:9)
equivalent to f=32.8 - 393.6mm on 35mm lens(3:2)
IrisF2.8 - F4.5
auto/manual selectable
FocalizareAF/MF selectable
10 mm to ∞ (Wide)
1000 mm to ∞ (Tele)
Stabilizare imagineON/OFF selectable, shift lens
Diametru filtruM62 mm
Detalii camera
Tip senzor1.0-type (13.2mm x 8.8mm) back-illuminated Exmor RS CMOS sensor
Rezolutie efectivaaprox.14.2M pixels(16:9)/aprox.12.0M pixels(3:2)
Filtre ND integrate OFF: Clear, 1: 1/4ND, 2: 1/16ND, 3: 1/64ND
Iluminare minima Standard [60i] 3lux(1/60 Shutter Speed, gain 33dB)
Standard [50i] 3lux(1/50 Shutter Speed, gain 33dB)

LowLux [60i] 1.7lux(1/30 Shutter Speed, gain 33dB)
LowLux [50i] 1.7lux(1/25 Shutter Speed, gain 33dB)
Viteza obturator [60i]: 1/8 - 1/10,000
(1/6 - 1/10,000 cand se filmeaza in 24p)
[50i]: 1/6 -1/10,000
Functie Slow & Quick Motion [60i]:2160p:Frame rate selectable 1,2,4,8,15,30fps
[50i]:2160p:Frame rate selectable 1,2,3,6,12,25fps
[60i]:1080p:Frame rate selectable 1,2,4,8,15,30,60,120fps
[50i]:1080p:Frame rate selectable 1,2,3,6,12,25,50,100fps
Super Slow Motion[60i]1080p:Frame rate selectable 240,480,960fps
[50i]:1080p:Frame rate selectable 250,500,1000fps
Balans de alb Preset(Indoor:3200K, Outdoor:5600K±7 steps, Color temparature set range:2300-15000K)
Onepush A, B, Auto selectable
Gain-3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
Gamma CurveSelectabila
Intrari/Iesiri
Intrare Audio XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Iesire Video Integrated into Multi/Micro USB jack(×1), Composite 1.0Vp-p, 75Ω
Iesire Audio Integrated into Multi/Micro USB jack
Iesire SDIBNC (x1), 3G/HD/SD
SMPTE 424M/292M/259M standards
USBMulti/Micro USB jack (x1)
Iesire casti Stereo mini jack (x1)
Difuzor Monaural
Intrare alimentareDC jack
RemoteIntegrated into Multi/Micro USB jack
Stereo mini-mini jack (Φ2.5mm)
Iesire HDMIType A (x1)
Monitorizare
Vizor1.0cm(0.39 type)OLED
aprox. 2.36M dots
LCD8.8cm(3.5 type)
aprox. 1.56M dots
Microfon integrat Omni-directional stereo electret condenser microphone
Media
Medii stocare Memory Stick Pro Duo™ and SD/SDHC/SDXC compatible x1 SD/SDHC/SDXC x1
Wi-Fi/ NFC
Supported formatIEEE 802.11 a/b/g/n/ac
Banda de frecventa2.4 GHz bandwidth
 5.2/5.3/5.6/5.8 GHz bandwidth
SecuritateWEP/WPA-PSK/WPA2-PSK
NFCNFC Forum Type 3 Tag compliant



Mai mult

Specificatii
Sony PXW-Z90, 4K, Senzor 1" Exmor RS

Product Information

Buletts txt listing
  • Senzor 1" Exmor RS CMOS
  • Filmare UHD 4K (3840 x 2160) 25p
  • Phase-Detection Auto Focus (AF)
  • 4K HDR cu Hybrid Log-Gamma (HLG)
  • Zoom optic 12x, Zoom Clear Image 18x
  • Full HD pana la 120 fps/ Super Slow to 960 fps
  • XAVC HD/ QFHD & MPEG2HD
  • S-Log3/ S-Gamut3
  • 3G-SDI Output, Streaming 2.4/ 5 GHz
  • 2 sloturi de card SD, Relay & Simul Modes
Warranty Length24
Product stateNou

Camere Video Profesionale

Dimensiune Senzor1"
Zoom optic (X)12
Bitrate maxim (Mbps)100
Intrare AudioXLR, TRS 3.5mm
Interfata IesireSDI, HDMI
Suport MemorieSD
Numar maxim cadre (fps)50/60
